Overview

The Account Access Consents API is used by an AISP to request an ASPSP to create a new account-access-consent resource, retrieve the status of account-access-consent resource and delete the account-access-consent resource.

This resource description should be read in conjunction with a compatible Account Information Services API Profile.

Endpoints

 ResourceHTTP OperationEndpointMandatory?ScopeGrant TypeIdempotency KeyParametersRequest ObjectResponse Object
1account-access-consentsPOSTPOST /account-access-consentsMandatoryaccountsClient CredentialsNo OBReadConsent1OBReadConsentResponse1
2account-access-consentsGETGET /account-access-consents/{ConsentId}MandatoryaccountsClient CredentialsNo  OBReadConsentResponse1
3account-access-consentsDELETEDELETE /account-access-consents/{ConsentId}MandatoryaccountsClient CredentialsNo

POST /account-access-consents

The API allows the AISP to ask an ASPSP to create a new account-access-consent resource.

  • This API effectively allows the AISP to send a copy of the consent to the ASPSP to authorise access to account and transaction information.
  • An AISP is not able to pre-select a set of accounts for account-access-consent authorisation. This is because the behaviour of the pre-selected accounts, after authorisation, is not clear from a Legal perspective.
  • An ASPSP creates the account-access-consent resource and responds with a unique ConsentId to refer to the resource.
  • Prior to calling the API, the AISP must have an access token issued by the ASPSP using a client credentials grant.

The PSU must authenticate with the ASPSP and authorise the account-access-consent for the account-access-consent to be successfully setup. The account-access-consent resource that is created successfully must have the following Status code-list enumeration:

 StatusStatus Description
1AwaitingAuthorisationThe account access consent is awaiting authorisation.

After authorisation has taken place the account-access-consent resource may have these following statuses.

 StatusStatus Description
1RejectedThe account access consent has been rejected.
2AuthorisedThe account access consent has been successfully authorised.
3RevokedThe account access consent has been revoked via the ASPSP interface.

Status Flow

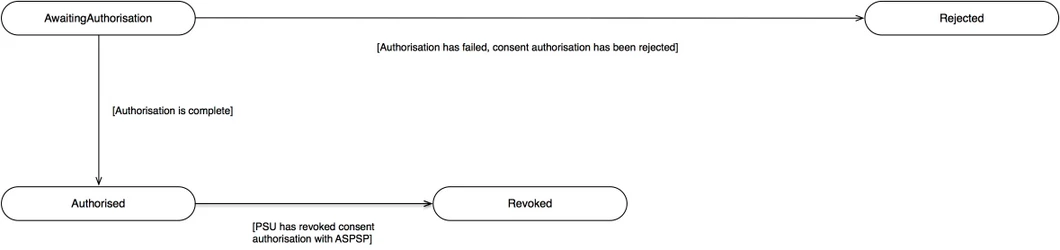

This is the state diagram for the Status.

Consent Authorisation.jpg

GET /account-access-consents/{ConsentId}

An AISP may optionally retrieve an account-access-consent resource that they have created to check its status.

Prior to calling the API, the AISP must have an access token issued by the ASPSP using a client credentials grant.

The usage of this API endpoint will be subject to an ASPSP’s fair usage policies.

Once the PSU authorises the account-access-consent resource - the Status of the account-access-consent resource will be updated with “Authorised”.

The available Status code-list enumerations for the account-access-consent resource are:

 StatusStatus Description
1RejectedThe account access consent has been rejected.
2AwaitingAuthorisationThe account access consent is awaiting authorisation.
3AuthorisedThe account access consent has been successfully authorised.
4RevokedThe account access consent has been revoked via the ASPSP interface.

DELETE /account-access-consents/{ConsentId}

If the PSU revokes consent to data access with the AISP, the AISP must delete the account-access-consent resource with the ASPSP as soon as is practically possible.

  • This is done by making a call to DELETE the account-access-consent resource.
  • Prior to calling the API, the AISP must have an access token issued by the ASPSP using a client credentials grant.

Data Model

Account Access Consents - Request

The OBReadConsent1 object will be used for the call to:

  • POST /account-access-consents

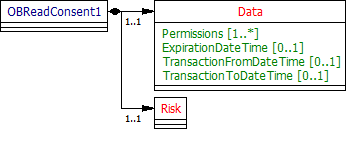

UML Diagram


Notes

  • The fields in the OBReadConsent1 object are described in the Consent Elements section.
  • No fields have been identified for the Risk section.

Data Dictionary

NameOccurrenceXPathEnhancedDefinitionClassCodes
OBReadConsent1 OBReadConsent1 OBReadConsent1
Data1..1OBReadConsent1/Data OBReadData1
Permissions1..nOBReadConsent1/Data/PermissionsSpecifies the Open Banking account access data types. This is a list of the data clusters being consented by the PSU, and requested for authorisation with the ASPSP.OBExternalPermissions1CodeReadAccountsBasic ReadAccountsDetail ReadBalances ReadBeneficiariesBasic ReadBeneficiariesDetail ReadDirectDebits ReadOffers ReadPAN ReadParty ReadPartyPSU ReadProducts ReadScheduledPaymentsBasic ReadScheduledPaymentsDetail ReadStandingOrdersBasic ReadStandingOrdersDetail ReadStatementsBasic ReadStatementsDetail ReadTransactionsBasic ReadTransactionsCredits ReadTransactionsDebits ReadTransactionsDetail
ExpirationDateTime0..1OBReadConsent1/Data/ExpirationDateTimeSpecified date and time the permissions will expire. If this is not populated, the permissions will be open ended.ISODateTime
TransactionFromDateTime0..1OBReadConsent1/Data/TransactionFromDateTimeSpecified start date and time for the transaction query period. If this is not populated, the start date will be open ended, and data will be returned from the earliest available transaction.ISODateTime
TransactionToDateTime0..1OBReadConsent1/Data/TransactionToDateTimeSpecified end date and time for the transaction query period. If this is not populated, the end date will be open ended, and data will be returned to the latest available transaction.ISODateTime
Risk1..1OBReadConsent1/RiskThe Risk section is sent by the initiating party to the ASPSP. It is used to specify additional details for risk scoring for Account Info.OBRisk2

Account Access Consents - Response

The OBReadConsentResponse1 object will be used for the call to:

  • GET /account-access-consents/{ConsentId}

And response to:

  • POST /account-access-consents

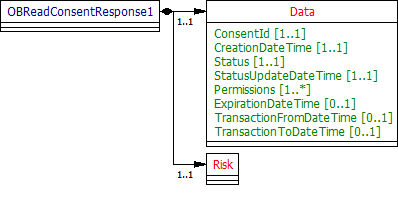

UML Diagram


Notes

  • The OBReadConsentResponse1 object contains the same information as the OBReadConsent1, but with additional fields:
    • ConsentId - to uniquely identify the account-access-consent resource.
    • Status.
    • CreationDateTime.
    • StatusUpdateDateTime.
  • No fields have been identified for the Risk section.

Data Dictionary

NameOccurrenceXPathEnhancedDefinitionClassCodes
OBReadConsentResponse1 OBReadConsentResponse1 OBReadConsentResponse1
Data1..1OBReadConsentResponse1/Data OBReadDataConsentResponse1
ConsentId1..1OBReadConsentResponse1/Data/ConsentIdUnique identification as assigned to identify the account access consent resource.Max128Text
CreationDateTime1..1OBReadConsentResponse1/Data/CreationDateTimeDate and time at which the resource was created.ISODateTime
Status1..1OBReadConsentResponse1/Data/StatusSpecifies the status of consent resource in code form.OBExternalRequestStatus1CodeAuthorised AwaitingAuthorisation Rejected Revoked
StatusUpdateDateTime1..1OBReadConsentResponse1/Data/StatusUpdateDateTimeDate and time at which the resource status was updated.ISODateTime
Permissions1..nOBReadConsentResponse1/Data/PermissionsSpecifies the Open Banking account access data types. This is a list of the data clusters being consented by the PSU, and requested for authorisation with the ASPSP.OBExternalPermissions1CodeReadAccountsBasic ReadAccountsDetail ReadBalances ReadBeneficiariesBasic ReadBeneficiariesDetail ReadDirectDebits ReadOffers ReadPAN ReadParty ReadPartyPSU ReadProducts ReadScheduledPaymentsBasic ReadScheduledPaymentsDetail ReadStandingOrdersBasic ReadStandingOrdersDetail ReadStatementsBasic ReadStatementsDetail ReadTransactionsBasic ReadTransactionsCredits ReadTransactionsDebits ReadTransactionsDetail
ExpirationDateTime0..1OBReadConsentResponse1/Data/ExpirationDateTimeSpecified date and time the permissions will expire. If this is not populated, the permissions will be open ended.ISODateTime
TransactionFromDateTime0..1OBReadConsentResponse1/Data/TransactionFromDateTimeSpecified start date and time for the transaction query period. If this is not populated, the start date will be open ended, and data will be returned from the earliest available transaction.ISODateTime
TransactionToDateTime0..1OBReadConsentResponse1/Data/TransactionToDateTimeSpecified end date and time for the transaction query period. If this is not populated, the end date will be open ended, and data will be returned to the latest available transaction.ISODateTime
Risk1..1OBReadConsentResponse1/RiskThe Risk section is sent by the initiating party to the ASPSP. It is used to specify additional details for risk scoring for Account Info.OBRisk2

Usage Examples

Setup Account Access Consent - All Permissions Granted

Post Account Access Consents Request

POST /account-access-consents HTTP/1.1
Authorization: Bearer 2YotnFZFEjr1zCsicMWpAA
x-fapi-auth-date: Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json
Accept: application/json

{
  "Data": {
    "Permissions": [
      "ReadAccountsDetail",
      "ReadBalances",
      "ReadBeneficiariesDetail",
      "ReadDirectDebits",
      "ReadProducts",
      "ReadStandingOrdersDetail",
      "ReadTransactionsCredits",
      "ReadTransactionsDebits",
      "ReadTransactionsDetail",
      "ReadOffers",
      "ReadPAN",
      "ReadParty",
      "ReadPartyPSU",
      "ReadScheduledPaymentsDetail",
      "ReadStatementsDetail"
    ],
    "ExpirationDateTime": "2017-05-02T00:00:00+00:00",
    "TransactionFromDateTime": "2017-05-03T00:00:00+00:00",
    "TransactionToDateTime": "2017-12-03T00:00:00+00:00"
  },
  "Risk": {}
}

Post Account Access Consents Response

HTTP/1.1 201 Created
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json

{
  "Data": {
    "ConsentId": "urn-alphabank-intent-88379",
    "Status": "AwaitingAuthorisation",
    "StatusUpdateDateTime": "2017-05-02T00:00:00+00:00",
    "CreationDateTime": "2017-05-02T00:00:00+00:00",
    "Permissions": [
      "ReadAccountsDetail",
      "ReadBalances",
      "ReadBeneficiariesDetail",
      "ReadDirectDebits",
      "ReadProducts",
      "ReadStandingOrdersDetail",
      "ReadTransactionsCredits",
      "ReadTransactionsDebits",
      "ReadTransactionsDetail",
      "ReadOffers",
      "ReadPAN",
      "ReadParty",
      "ReadPartyPSU",
      "ReadScheduledPaymentsDetail",
      "ReadStatementsDetail"
    ],
    "ExpirationDateTime": "2017-08-02T00:00:00+00:00",
    "TransactionFromDateTime": "2017-05-03T00:00:00+00:00",
    "TransactionToDateTime": "2017-12-03T00:00:00+00:00"

  },
  "Risk": {},
  "Links": {
    "Self": "https://api.alphabank.com/open-banking/v3.1/aisp/account-access-consents/urn-alphabank-intent-88379"
  },
  "Meta": {
    "TotalPages": 1
  }
}

Status - AwaitingAuthorisation

This is an example of a GET request which is made before the account access consent resource is authorised.

Get Account Access Consents Request

GET /account-access-consents/urn-alphabank-intent-88379 HTTP/1.1
Authorization: Bearer 2YotnFZFEjr1zCsicMWpAA
x-fapi-auth-date: Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Accept: application/json

Get Account Access Consents Response

HTTP/1.1 200 OK
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json

{
  "Data": {
    "ConsentId": "urn-alphabank-intent-88379",
    "Status": "AwaitingAuthorisation",
    "StatusUpdateDateTime": "2017-05-02T00:00:00+00:00",
    "CreationDateTime": "2017-05-02T00:00:00+00:00",
    "Permissions": [
      "ReadAccountsDetail",
      "ReadBalances",
      "ReadBeneficiariesDetail",
      "ReadDirectDebits",
      "ReadProducts",
      "ReadStandingOrdersDetail",
      "ReadTransactionsCredits",
      "ReadTransactionsDebits",
      "ReadTransactionsDetail",
      "ReadOffers",
      "ReadPAN",
      "ReadParty",
      "ReadPartyPSU",
      "ReadScheduledPaymentsDetail",
      "ReadStatementsDetail"
    ],
    "ExpirationDateTime": "2017-08-02T00:00:00+00:00",
    "TransactionFromDateTime": "2017-05-03T00:00:00+00:00",
    "TransactionToDateTime": "2017-12-03T00:00:00+00:00"
  },
  "Risk": {},
  "Links": {
    "Self": "https://api.alphabank.com/open-banking/v3.1/aisp/account-access-consents/urn-alphabank-intent-88379"
  },
  "Meta": {
    "TotalPages": 1
  }
}

Status - Authorised

This is an example of a GET request which is made after the account access consent resource is authorised.

Get Account Access Consents Request

GET /account-access-consents/urn-alphabank-intent-88379 HTTP/1.1
Authorization: Bearer 2YotnFZFEjr1zCsicMWpAA
x-fapi-auth-date: Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Accept: application/json

Get Account Access Consents Response

HTTP/1.1 200 OK
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json

{
  "Data": {
    "ConsentId": "urn-alphabank-intent-88379",
    "Status": "Authorised",
    "StatusUpdateDateTime": "2017-05-02T00:05:00+00:00",
    "CreationDateTime": "2017-05-02T00:00:00+00:00",
    "Permissions": [
      "ReadAccountsDetail",
      "ReadBalances",
      "ReadBeneficiariesDetail",
      "ReadDirectDebits",
      "ReadProducts",
      "ReadStandingOrdersDetail",
      "ReadTransactionsCredits",
      "ReadTransactionsDebits",
      "ReadTransactionsDetail",
      "ReadOffers",
      "ReadPAN",
      "ReadParty",
      "ReadPartyPSU",
      "ReadScheduledPaymentsDetail",
      "ReadStatementsDetail"
    ],
    "ExpirationDateTime": "2017-08-02T00:00:00+00:00",
    "TransactionFromDateTime": "2017-05-03T00:00:00+00:00",
    "TransactionToDateTime": "2017-12-03T00:00:00+00:00"
  },
  "Risk": {},
  "Links": {
    "Self": "https://api.alphabank.com/open-banking/v3.1/aisp/account-access-consents/urn-alphabank-intent-88379"
  },
  "Meta": {
    "TotalPages": 1
  }
}

The DELETE /account-access-consents call allows an AISP to delete a previously created account-access-consent (whether it is currently authorised or not). The PSU may want to remove their consent via the AISP instead of revoking authorisation with the ASPSP.

This API call allows the PSU to revoke consent with the AISP, and for that consent to be reflected in authorisation with the ASPSP.

Delete Account Access Consents Request

DELETE /account-access-consents/urn-alphabank-intent-88379 HTTP/1.1
Authorization: Bearer 2YotnFZFEjr1zCsicMWpAA
x-fapi-auth-date:  Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d

Delete Account Access Consents Response

HTTP/1.1 204 No Content
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d

Post Account Access Consent Request

POST /account-access-consents HTTP/1.1
Authorization: Bearer 2YotnFZFEjr1zCsicMWpAA
x-fapi-auth-date:  Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json
Accept: application/json

{
  "Data": {
    "Permissions": [
      "ReadAccountsBasic",
      "ReadBalances"
    ],
    "ExpirationDateTime": "2017-05-02T00:00:00+00:00",
    "TransactionFromDateTime": "2017-05-03T00:00:00+00:00",
    "TransactionToDateTime": "2017-12-03T00:00:00+00:00"
  },
  "Risk": {}
}

Post Account Access Consent Response

HTTP/1.1 201 Created
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json

{
  "Data": {
    "ConsentId": "urn-alphabank-intent-88379",
    "Status": "AwaitingAuthorisation",
    "StatusUpdateDateTime": "2017-05-02T00:00:00+00:00",
    "CreationDateTime": "2017-05-02T00:00:00+00:00",
    "Permissions": [
      "ReadAccountsBasic",
      "ReadBalances"
    ],
    "ExpirationDateTime": "2017-08-02T00:00:00+00:00",
    "TransactionFromDateTime": "2017-05-03T00:00:00+00:00",
    "TransactionToDateTime": "2017-12-03T00:00:00+00:00"
  },
  "Risk": {},
  "Links": {
    "Self": "https://api.alphabank.com/open-banking/v3.1/aisp/account-access-consents/urn-alphabank-intent-88379"
  },
  "Meta": {
    "TotalPages": 1
  }
}
