Direct Debits - v3.1.3
Overview
The direct-debits resource is used by an AISP to retrieve the direct debits for a specific account identified by AccountId or to retrieve direct debits for all accounts that the PSU has consented to.
This resource description should be read in conjunction with a compatible Account Information Services API Profile.
Endpoints
Endpoints for the resource and available methods.
| Resource | HTTP Operation | Endpoint | Mandatory? | Scope | Grant Type | Idempotency Key | Parameters | Request Object | Response Object | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | direct-debits | GET | GET /accounts/{AccountId}/direct-debits | Conditional | accounts | Authorization Code | No | OBReadDirectDebit2 | ||
| 2 | direct-debits | GET | GET /direct-debits | Optional | accounts | Authorization Code | No | Pagination | OBReadDirectDebit2 |
GET /accounts/{AccountId}/direct-debits
An ASPSP must provide this endpoint for AISPs to retrieve the direct-debits for a specific account identified by AccountId.
GET /direct-debits
An ASPSP may provide this endpoint for AISPs to retrieve direct-debits for all accounts that the PSU has consented to. This will retrieve the direct-debit resources for all authorised accounts linked to the account-request.
Data Model
Resource Definition
A resource that contains a set of elements that describes the list of direct debits that have been set up on a specific account (AccountId). An account (AccountId) may have no direct debits set up, or may have multiple direct debits set up.

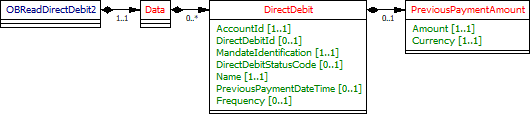

UML Diagram
Permission Codes
The resource requires the ReadDirectDebits permission. The resource response payload does not differ depending on the permissions granted.
Data Dictionary
| Name | Occurrence | XPath | EnhancedDefinition | Class | Codes | Pattern |
|---|---|---|---|---|---|---|
| OBReadDirectDebit2 | OBReadDirectDebit2 | OBReadDirectDebit2 | ||||
| Data | 1..1 | OBReadDirectDebit2/Data | OBReadDataDirectDebit2 | |||
| DirectDebit | 0..n | OBReadDirectDebit2/Data/DirectDebit | Account to or from which a cash entry is made. | OBDirectDebit2 | ||
| AccountId | 1..1 | OBReadDirectDebit2/Data/DirectDebit/AccountId | A unique and immutable identifier used to identify the account resource. This identifier has no meaning to the account owner. | Max40Text | ||
| DirectDebitId | 0..1 | OBReadDirectDebit2/Data/DirectDebit/DirectDebitId | A unique and immutable identifier used to identify the direct debit resource. This identifier has no meaning to the account owner. | Max40Text | ||
| MandateIdentification | 1..1 | OBReadDirectDebit2/Data/DirectDebit/MandateIdentification | Direct Debit reference. For AUDDIS service users provide Core Reference. For non AUDDIS service users provide Core reference if possible or last used reference. | Max35Text | ||
| DirectDebitStatusCode | 0..1 | OBReadDirectDebit2/Data/DirectDebit/DirectDebitStatusCode | Specifies the status of the direct debit in code form. | OBExternalDirectDebitStatus1Code | Active Inactive | |
| Name | 1..1 | OBReadDirectDebit2/Data/DirectDebit/Name | Name of Service User. | Max70Text | ||
| PreviousPaymentDateTime | 0..1 | OBReadDirectDebit2/Data/DirectDebit/PreviousPaymentDateTime | Date of most recent direct debit collection. | ISODateTime | ||
| Frequency | 0..1 | OBReadDirectDebit2/Data/DirectDebit/Frequency | Regularity with which direct debit instructions are to be created and processed | OBExternalDirectDebitFrequency1Code | ||
| PreviousPaymentAmount | 0..1 | OBReadDirectDebit2/Data/DirectDebit/PreviousPaymentAmount | The amount of the most recent direct debit collection. | OBActiveOrHistoricCurrencyAndAmount | ||
| Amount | 1..1 | OBReadDirectDebit2/Data/DirectDebit/PreviousPaymentAmount/Amount | A number of monetary units specified in an active currency where the unit of currency is explicit and compliant with ISO 4217. | OBActiveCurrencyAndAmount_SimpleType | ^\d{1,13}.\d{1,5}$ | |
| Currency | 1..1 | OBReadDirectDebit2/Data/DirectDebit/PreviousPaymentAmount/Currency | A code allocated to a currency by a Maintenance Agency under an international identification scheme, as described in the latest edition of the international standard ISO 4217 “Codes for the representation of currencies and funds”. | ActiveOrHistoricCurrencyCode | ^[A-Z]{3,3}$ |
Usage Examples
Specific Account
Get Accounts Direct Debits Request
GET /accounts/22289/direct-debits HTTP/1.1
Authorization: Bearer Az90SAOJklae
x-fapi-auth-date: Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Accept: application/json
Get Accounts Direct Debits Response
HTTP/1.1 200 OK
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json
{
"Data": {
"DirectDebit": [
{
"AccountId": "22289",
"DirectDebitId": "DD03",
"MandateIdentification": "Caravanners",
"DirectDebitStatusCode": "Active",
"Name": "Towbar Club 3 - We Love Towbars",
"PreviousPaymentDateTime": "2017-04-05T10:43:07+00:00",
"PreviousPaymentAmount": {
"Amount": "0.57",
"Currency": "GBP"
}
}
]
},
"Links": {
"Self": "https://api.alphabank.com/open-banking/v3.1/aisp/accounts/22289/direct-debits/"
},
"Meta": {
"TotalPages": 1
}
}
Bulk
Get Direct Debits Request
GET /direct-debits HTTP/1.1
Authorization: Bearer Az90SAOJklae
x-fapi-auth-date: Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Accept: application/json
Get Direct Debits Response
HTTP/1.1 200 OK
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json
{
"Data": {
"DirectDebit": [
{
"AccountId": "22289",
"DirectDebitId": "DD03",
"MandateIdentification": "Caravanners",
"DirectDebitStatusCode": "Active",
"Name": "Towbar Club 3 - We Love Towbars",
"PreviousPaymentDateTime": "2017-04-05T10:43:07+00:00",
"PreviousPaymentAmount": {
"Amount": "0.57",
"Currency": "GBP"
}
},
{
"AccountId": "31820",
"DirectDebitId": "DD77",
"MandateIdentification": "Golfers",
"DirectDebitStatusCode": "Active",
"Name": "Golf Club",
"PreviousPaymentDateTime": "2017-05-06T09:00:00+00:00",
"PreviousPaymentAmount": {
"Amount": "22.30",
"Currency": "GBP"
}
}
]
},
"Links": {
"Self": "https://api.alphabank.com/open-banking/v3.1/aisp/direct-debits/"
},
"Meta": {
"TotalPages": 1
}
}
