Overview

The scheduled-payments resource is used by an AISP to retrieve the scheduled payments for a specific account identified by AccountId or to retrieve scheduled payments for all accounts that the PSU has consented to.

This resource description should be read in conjunction with a compatible Account Information Services API Profile.

Endpoints

Endpoints for the resource and available methods.

 ResourceHTTP OperationEndpointMandatory?ScopeGrant TypeIdempotency KeyParametersRequest ObjectResponse Object
1scheduled-paymentsGETGET /accounts/{AccountId}/scheduled-paymentsConditionalaccountsAuthorization CodeNo  OBReadScheduledPayment3
2scheduled-paymentsGETGET /scheduled-paymentsOptionalaccountsAuthorization CodeNoPagination OBReadScheduledPayment3

GET /accounts/{AccountId}/scheduled-payments

An ASPSP may provide this endpoint for AISPs to retrieve the scheduled-payments for a specific AccountId (which is retrieved in the call to GET /accounts).

GET /scheduled-payments

If an ASPSP has implemented the bulk retrieval endpoints, an AISP may optionally retrieve the scheduled-payments resources in bulk.

This will retrieve the scheduled-payments resources for all authorised accounts linked to the account-request.

Data Model

Resource Definition

A resource that contains a set of elements that describes the scheduled payments that have been set up on a specific account (AccountId). A scheduled payment is a single one-off payment scheduled for a future date.

An account (AccountId) may have no scheduled payments set up, or may have multiple scheduled payments set up.

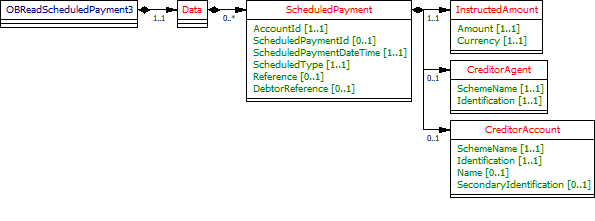

UML Diagram


Notes

  • The Creditor Account and CreditorAgent blocks replicate what is used consistently throughout the Account Information APIs to identify an account.
  • For the /accounts/{AccountId}/scheduled-payments endpoint, the Creditor Account and CreditorAgent blocks represent the account that is receiving funds (so has been named the CreditorAccount, for consistency with the PISP use case).
  • A DateTime element has been used so that there is consistency across all API endpoints using dates. Where time elements do not exist in ASPSP systems, the time portion of the DateTime element will be defaulted to 00:00:00+00:00.
  • The Amount elements all have embedded Currency elements for consistency is ISO 20022, and across the other API endpoints.

Permission Codes

The resource differs depending on the permissions (ReadScheduledPaymentsBasic and ReadScheduledPaymentsDetail) used to access resource. In the event that the resource is accessed with both ReadScheduledPaymentsBasic and ReadScheduledPaymentsDetail, the most detailed level (ReadScheduledPaymentsDetail) must be used.

  • These objects must not be returned without the ReadScheduledPaymentsDetail permission:
    • OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAgent
    • OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccount
  • If the ReadScheduledPaymentsDetail is granted by the PSU:
    • OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAgentmay be returned if applicable to the account and ASPSP (0..1)
    • OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccount must be returned (1..1)

If the ReadPAN permission is granted by the PSU - the ASPSP may choose to populate the OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccount/Identification with the unmasked PAN (if the PAN is being populated in the response).

Data Dictionary

NameOccurrenceXPathEnhancedDefinitionClassCodesPattern
OBReadScheduledPayment3 OBReadScheduledPayment3 OBReadScheduledPayment3
Data1..1OBReadScheduledPayment3/Data OBReadDataScheduledPayment3
ScheduledPayment0..nOBReadScheduledPayment3/Data/ScheduledPayment OBScheduledPayment3
AccountId1..1OBReadScheduledPayment3/Data/ScheduledPayment/AccountIdA unique and immutable identifier used to identify the account resource. This identifier has no meaning to the account owner.Max40Text
ScheduledPaymentId0..1OBReadScheduledPayment3/Data/ScheduledPayment/ScheduledPaymentIdA unique and immutable identifier used to identify the scheduled payment resource. This identifier has no meaning to the account owner.Max40Text
ScheduledPaymentDateTime1..1OBReadScheduledPayment3/Data/ScheduledPayment/ScheduledPaymentDateTimeThe date on which the scheduled payment will be made.ISODateTime
ScheduledType1..1OBReadScheduledPayment3/Data/ScheduledPayment/ScheduledTypeSpecifies the scheduled payment date type requestedOBExternalScheduleType1CodeArrival Execution
Reference0..1OBReadScheduledPayment3/Data/ScheduledPayment/ReferenceUnique reference, as assigned by the creditor, to unambiguously refer to the payment transaction. Usage: If available, the initiating party should provide this reference in the structured remittance information, to enable reconciliation by the creditor upon receipt of the amount of money. If the business context requires the use of a creditor reference or a payment remit identification, and only one identifier can be passed through the end-to-end chain, the creditor’s reference or payment remittance identification should be quoted in the end-to-end transaction identification.Max35Text
DebtorReference0..1OBReadScheduledPayment3/Data/ScheduledPayment/DebtorReferenceA reference value provided by the PSU to the PISP while setting up the scheduled payment.Max35Text
InstructedAmount1..1OBReadScheduledPayment3/Data/ScheduledPayment/InstructedAmountAmount of money to be moved between the debtor and creditor, before deduction of charges, expressed in the currency as ordered by the initiating party. Usage: This amount has to be transported unchanged through the transaction chain.OBActiveOrHistoricCurrencyAndAmount
Amount1..1OBReadScheduledPayment3/Data/ScheduledPayment/InstructedAmount/AmountA number of monetary units specified in an active currency where the unit of currency is explicit and compliant with ISO 4217.OBActiveCurrencyAndAmount_SimpleType ^\d{1,13}.\d{1,5}$
Currency1..1OBReadScheduledPayment3/Data/ScheduledPayment/InstructedAmount/CurrencyA code allocated to a currency by a Maintenance Agency under an international identification scheme, as described in the latest edition of the international standard ISO 4217 “Codes for the representation of currencies and funds”.ActiveOrHistoricCurrencyCode ^[A-Z]{3,3}$
CreditorAgent0..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAgentParty that manages the account on behalf of the account owner, that is manages the registration and booking of entries on the account, calculates balances on the account and provides information about the account. This is the servicer of the beneficiary account.OBBranchAndFinancialInstitutionIdentification5
SchemeName1..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAgent/SchemeNameName of the identification scheme, in a coded form as published in an external list.OBExternalFinancialInstitutionIdentification4Code
Identification1..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAgent/IdentificationUnique and unambiguous identification of the servicing institution.Max35Text
CreditorAccount0..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccountProvides the details to identify the beneficiary account.OBCashAccount5
SchemeName1..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccount/SchemeNameName of the identification scheme, in a coded form as published in an external list.OBExternalAccountIdentification4Code
Identification1..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccount/IdentificationBeneficiary account identification.Max256Text
Name0..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccount/NameThe account name is the name or names of the account owner(s) represented at an account level, as displayed by the ASPSP’s online channels. Note, the account name is not the product name or the nickname of the account.Max70Text
SecondaryIdentification0..1OBReadScheduledPayment3/Data/ScheduledPayment/CreditorAccount/SecondaryIdentificationThis is secondary identification of the account, as assigned by the account servicing institution. This can be used by building societies to additionally identify accounts with a roll number (in addition to a sort code and account number combination).Max34Text

Usage Examples

Specific Account

Get Account Specific Scheduled Payments Request

GET /accounts/22289/scheduled-payments HTTP/1.1
Authorization: Bearer Az90SAOJklae
x-fapi-auth-date:  Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Accept: application/json

Response: Get Accounts Specific Scheduled Payments Response

HTTP/1.1 200 OK
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json
{
  "Data": {
    "ScheduledPayment": [
      {
        "AccountId": "22289",
        "ScheduledPaymentId": "SP03",
        "ScheduledPaymentDateTime": "2017-05-05T00:00:00+00:00",
        "ScheduledType": "Execution",
        "InstructedAmount": {
          "Amount": "10.00",
          "Currency": "GBP"
        },
        "CreditorAccount": {
          "SchemeName": "UK.OBIE.SortCodeAccountNumber",
          "Identification": "23605490179017",
          "Name": "Mr Tee"
        }
      }
    ]
  },
  "Links": {
    "Self": "https://api.alphabank.com/open-banking/v3.1/aisp/accounts/22289/scheduled-payments/"
  },
  "Meta": {
    "TotalPages": 1
  }
}

Bulk

Get Bulk Scheduled Payments Request

GET /scheduled-payments HTTP/1.1
Authorization: Bearer Az90SAOJklae
x-fapi-auth-date:  Sun, 10 Sep 2017 19:43:31 GMT
x-fapi-customer-ip-address: 104.25.212.99
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Accept: application/json

Get Bulk Scheduled Payments Response

HTTP/1.1 200 OK
x-fapi-interaction-id: 93bac548-d2de-4546-b106-880a5018460d
Content-Type: application/json
{
  "Data": {
    "ScheduledPayment": [
      {
		"AccountId": "22289",
        "ScheduledPaymentId": "SP03",
        "ScheduledPaymentDateTime": "2017-05-05T00:00:00+00:00",
        "ScheduledType": "Execution",
        "InstructedAmount": {
          "Amount": "10.00",
          "Currency": "GBP"
        },
        "CreditorAccount": {
          "SchemeName": "UK.OBIE.SortCodeAccountNumber",
          "Identification": "23605490179017",
          "Name": "Mr Tee"
        }
      },
      {
        "AccountId": "39570",
        "ScheduledPaymentId": "SP77",
        "ScheduledPaymentDateTime": "2017-04-05T00:00:00+00:00",
        "ScheduledType": "Execution",
        "InstructedAmount": {
          "Amount": "12.00",
          "Currency": "GBP"
        },
        "CreditorAccount": {
          "SchemeName": "UK.OBIE.SortCodeAccountNumber",
          "Identification": "23605490179017",
          "Name": "Mr Tee"
        }
      }
    ]
  },
  "Links": {
    "Self": "https://api.alphabank.com/open-banking/v3.1/aisp/scheduled-payments/"
  },
  "Meta": {
    "TotalPages": 1
  }
}
